TL-DO1-AC

The TL-DO1AC device has 3 fully independent alternating current output channels, each channel capable of driving loads up to a 230VAC 1A.

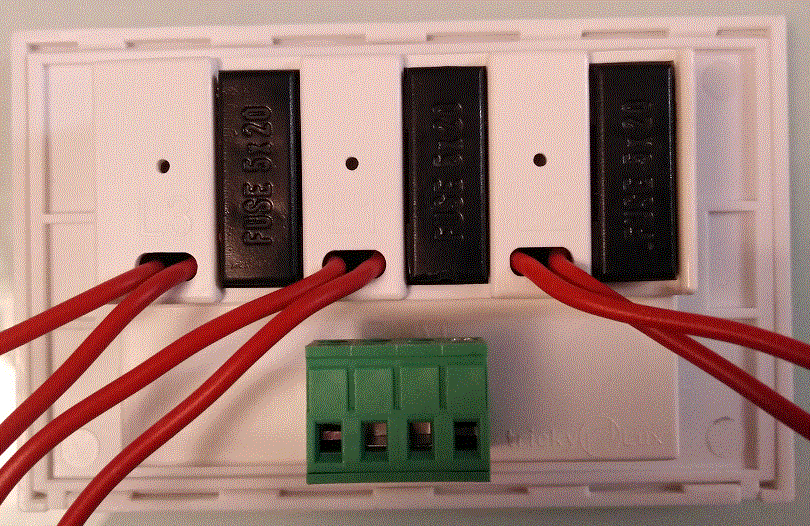

Each output channel is electrically isolated from the other channels and from the control electronics, and has its own protection fuse located on the back of the device.
The output channels control the electrical utilities connected to them (lamps, motors, fans, solenoid valves, electro-locks, motors for shutters, relays, contactors, or interfacing contacts of other devices), and can be configured to be switched in many ways: toggle/pulse, timed, via password, or via DOCprotocol commands received from other TL-PLS devices connected to DOCprotocol network.

The PLS devices represented in the images may be partially different (in shape, colors, labels, characteristics shown, version number, etc.) from the PLS devices currently available for sale.
